CNC Automatic Tool Change Spindle Motor Water Cooling 1.8KW 2.2KW 220V ISO20 Holder 400Hz with Inverter VFD Router(1.8KW 220V KIT)

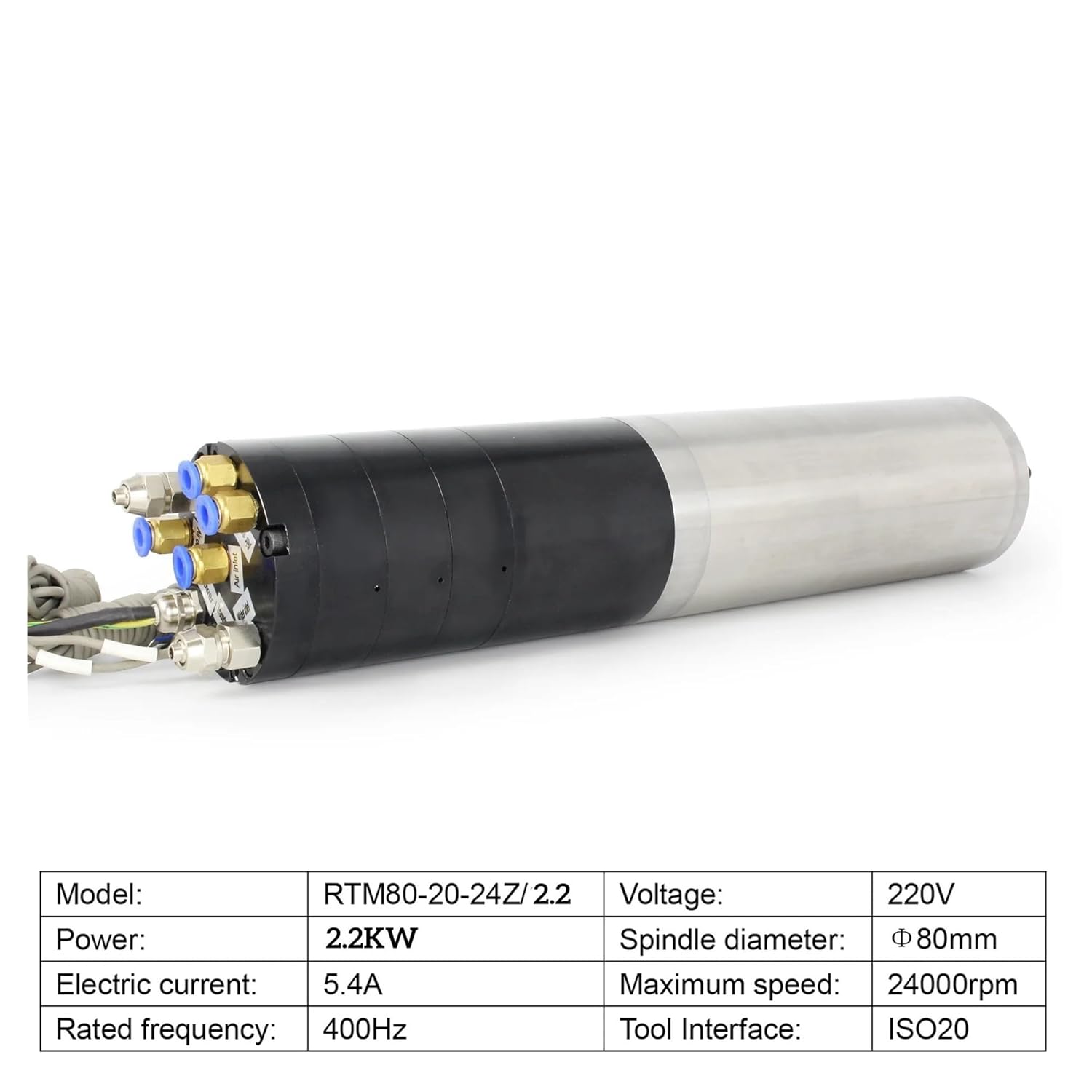

1.8KW/2.2KW 80mm ISO20 220V 24000rpm ATC Automatic Tool Change Spindle Motor ISO20-ER20-35MS Tool holder with handle 2.2KW 220V VFD Inverter Model: RTM80-20-24Z/2.2 Automatic Tool Change Spindle Motor 2.2KW ATC 220V 24000rpm Spindle Model RTM80-20-24Z/1.8 220V Voltage: 220V Maximum speed: 24000rpm Rated Frequency 400Hz Electric current 5.4A Motor level Level 2 rated power 1.5KW (S1) Maximum power: 2.1KW (S6) Rated Torque 0.59Nm maximum torque 0.84Nm Technical parameters Dust Blowing Spindle/Seal Pressure (MPa) 0.2-0.25 Spindle sealing gas flow (l/min) 65±10 (when working) Cooling Water Pressure (MPa) >=0.25 Cooling water flow (L/min) >=2.5 Cooling Water Temperature Degrees 24-28 Spindle static state pulse (μm) <;=3 Spindle Vibration (mm/s) <;=0.8 Spindle Diameter (mm) Diameter 80 (0/-0.02) Engine windings Pressure (V/M) 1000V/1 minute withstanding voltage ISO20 Inverter Specifications 2.2KW (220V) VFD 2.2KW Inverter Budget: Voltage: 220V Maximum speed: 24000 rpm Rated frequency: 400 Hz Engine level: Level 2 Rated power: 1.5KW (S1) Maximum power: 2.1KW (S6) Features: Water cooled atc 2.2kw 220v Model Number: RTM80-

• You only need to clean the dust when needed, easy to use.
• Wide application: the spindle motor is widely used in small household appliances, power tools, water pump, fan control and more
• GOOD BRUSHLESS MOTOR The brushless motor has lower interference than brushed motors, there will be no sparks generated when the brushless motor is running.
